Why Does My Telescope Shake? 7 Ways to Fix Telescope Vibration

Is a Shaking Telescope Normal?

Yes — and it’s the second most common beginner frustration after “I can’t see anything.” The good news: a shaking telescope is almost never a broken telescope. It’s an engineering problem with a short checklist of fixable causes. Most solutions are free. A few cost under $10.

The root cause in 80% of cases is the same: a lightweight alt-azimuth tripod at full extension, nudged with a fingertip at high magnification. At 100×, any movement of the telescope is magnified 100× in the eyepiece. A vibration that feels imperceptible at the tube looks like an earthquake through the lens.

Signs of a fixable problem

✓ Image shakes when you touch the telescope
✓ Vibration settles after 5–30 seconds
✓ Worse at higher magnifications
✓ Better when you don’t touch anything
✓ Fully extended tripod legs

Signs of a hardware problem

✗ Image shakes even with no wind and no contact
✗ Tripod leg locks are visibly stripped or broken
✗ Mount azimuth axis has visible play (wobbles when still)
✗ Vibration never fully settles, even after 60 seconds

The 7 Causes of Telescope Vibration

Work through this list in order — most telescopes have 2–3 of these at once.

1

Tripod legs extended too far

The longer the leg, the more flex it has. A fully extended lightweight aluminum tripod at chest height can vibrate for 15–30 seconds after being touched. This is the single most common cause.

Fix: Lower the tripod to the shortest comfortable working height. You may need to crouch slightly — that’s fine.

2

Tripod legs not spread wide enough

A narrow stance is inherently unstable. Tripod legs should be spread to their maximum angle, especially when observing at or near the zenith. Narrow stance + high magnification = constant tremor.

Fix: Spread legs to maximum angle. Check that each leg lock is tightly engaged — a half-locked leg is worse than either fully locked or fully unlocked.

3

Lightweight tripod with no vibration damping

Budget telescopes under $150 almost always come with thin aluminum tripods that have minimal mass. Mass is the enemy of vibration — a heavier tripod absorbs oscillation faster. These tripods also sit on hard feet that don’t absorb ground vibrations.

Fix: Hang a bag with 1–2 kg of weight (sand bag, water bottle, camera bag) from the tripod spreader or center column. This dramatically reduces settle time.

4

Touching the optical tube to adjust pointing

Every time you nudge the tube with a fingertip, you set it oscillating. Even if you keep your hand on the tube, the moment you let go the vibration starts. At 150×, this can take 10–20 seconds to damp out.

Fix: Use the slow-motion control knobs (if fitted), or use the palm of your hand to gently push the entire mount head as a unit rather than tapping the tube. A soft cord tied to the tube as a “tug handle” also works well.

5

Touching the focuser while looking through the eyepiece

Focusers on budget scopes are rack-and-pinion designs with slight drawtube play. Every turn of the focuser knob pushes and pulls the eyepiece assembly, transmitting vibration directly to the eyepiece barrel you’re looking through.

Fix: Focus once, then take your hands off everything, count to 5, and only then put your eye to the eyepiece. Never try to focus while actively looking — focus, release, view.

6

Heavy or long eyepiece shifting the balance point

Large 2“ eyepieces — especially wide-angle models like 40mm Plössls or 24mm Panoptics — can be significantly heavier than the standard eyepieces your telescope shipped with. This shifts the tube’s center of gravity, making it both front-heavy and more susceptible to vibration.

Fix: If the vibration got worse after installing a new eyepiece, try using the original eyepiece to confirm. A lighter or shorter eyepiece will vibrate less.

7

Hard surface under the tripod feet

Concrete, pavement, wooden decks, and tiled patios all transmit vibrations efficiently. A footstep three meters away can set a lightweight scope ringing when it’s standing on a hard surface. Grass and soil absorb ground vibrations; hard surfaces amplify them.

Fix: Place the tripod on grass or soil when possible. On hard surfaces, put vibration-dampening pads (cut tennis balls with slits, neoprene foam squares, or commercial scope-specific “vibration suppression pads”) under each tripod foot.

The 5-Minute Fix Checklist

Work through these in order before your next session. Most people fix 80% of their vibration problem in under 5 minutes.

Step 1. Lower tripod to minimum usable height. If you must crouch slightly, that’s fine. Vibration settle time will drop dramatically.
Step 2. Spread tripod legs to maximum angle. Verify each leg lock is fully tightened — give each a firm quarter-turn extra.
Step 3. Hang a 1 kg weight from the center of the tripod. A camera bag, water bottle, or bag of sand all work. Hook it from the spreader bar or center column.

Step 4. Change your observing habit: focus first, release the focuser, count to five, then look. Never touch the tube or focuser while your eye is at the eyepiece.
Step 5. If on a hard surface, place a folded piece of foam mat, cut tennis balls, or old mouse pads under each tripod foot. This alone can cut settle time by half.

★ Test result: How much did it help?

After applying all five steps, touch the tube gently and count how long the image shakes. Under 3 seconds = excellent. 3–8 seconds = good, check you’re not using maximum magnification. Over 10 seconds = your mount has a hardware issue or is genuinely too light for the optical tube.

Which Mount Type Vibrates the Most?

Vibration behaviour differs significantly between mount designs.

Mount Type	Vibration Level	Settle Time	Notes
Dobsonian (tabletop or floor)	Very Low	<1 second	No legs, low centre of gravity, mass-damped. The inherently stable design. Best choice for vibration-sensitive observing.
Heavy EQ mount (HEQ5, EQ6)	Low	1–3 sec	Mass and two-axis clutches dampen vibration quickly. Expensive, but stable.
Sturdy alt-az GoTo (NexStar SE)	Low–Medium	2–5 sec	Single-arm alt-az mounts are reasonably stable. Motor drives add some mass. Acceptable for most observers.
Light alt-az (StarSense LT, AstroMaster)	Medium	3–10 sec	Manageable with the checklist above. This is the most common beginner scope mount type.
Cheap EQ mount (AZ-EQ plastic tripod)	High	10–30 sec	Worst offender. Lightweight plastic equatorial mounts on thin tripods are nearly unusable above 75×. The checklist helps but cannot fully fix a fundamentally light mount.

When the Fix Is a Better Telescope

If you’ve applied every fix in the checklist and your scope still vibrates for more than 10 seconds after a gentle touch, the mount is simply too light for the optical tube. This is especially common with department-store “powerful” refractors on plastic EQ mounts. The good news: a stable replacement doesn’t have to be expensive.

Editor’s Pick — Most Vibration-Resistant Design

Best Anti-Vibration Design

Sky-Watcher Heritage 130P Tabletop Dobsonian

130mm f/5 Newtonian · 650mm focal length · Tabletop Dobsonian rocker box · No tripod

A Dobsonian rocker box is the most vibration-resistant mount design in astronomy. Low centre of gravity, no legs to flex, and the sheer mass of the wooden base dampen any vibration in under a second. The Heritage 130P sits on any flat surface (table, wall, car roof) and gives genuinely excellent views of planets, the Moon, and star clusters. If vibration is ruining your sessions, a Dobsonian is the permanent cure.

View on Amazon →

Stable Alt-Az Beginner Scope

Celestron StarSense Explorer LT 114AZ

114mm f/8.8 Newtonian · 1000mm focal length · Alt-az mount · StarSense phone-based alignment

If you want to keep a traditional tripod-mounted scope but upgrade from a plastic EQ mount, the StarSense LT 114AZ is the best entry-level alt-az option. Its two-arm fork-style alt-az head is significantly more rigid than single-arm or plastic EQ designs. Paired with the checklist above (lower legs, spread wide, weight hung from spreader), it vibrates for less than 4 seconds after a gentle nudge at 100×.

View on Amazon →

GoTo Upgrade — Motorized = No Touching

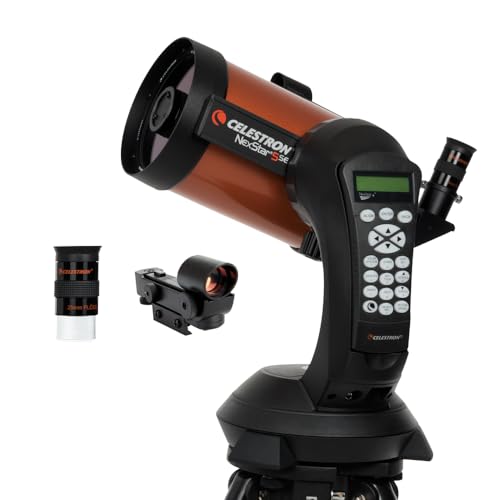

Celestron NexStar 5SE

125mm f/10 SCT · GoTo alt-az mount · Motorized two-axis tracking

The best long-term fix for vibration is not touching the telescope at all. A GoTo mount with motorized tracking slews to objects automatically and tracks them continuously. Once the scope is on target, you never need to nudge it — you just look. The NexStar 5SE’s two-arm single-fork alt-az is also inherently stiffer than tube-and-tripod designs at this price point.

View on Amazon →

Frequently Asked Questions

Is it normal for my telescope to shake when I touch it?

Yes — this is one of the most common telescope complaints, especially with budget scopes under $200. Lightweight tripods, when combined with high magnification, amplify even the smallest vibration. It doesn’t mean your telescope is broken or defective. The 5-step checklist above resolves it for most observers.

How long should it take for telescope vibration to stop?

Under 3 seconds is excellent. 3–8 seconds is acceptable for most observing. More than 10 seconds means the mount’s mass is genuinely inadequate for the optical tube. The frequency of the vibration tells you where it’s coming from: slow rocking = tripod legs; fast jitter = focuser play; sustained oscillation = loose leg lock.

Why does everything go blurry when I touch the telescope?

Any small physical movement is magnified at the eyepiece by the same factor as the magnification. At 100×, a 1mm nudge looks like a 100mm lurch in the eyepiece. The solution is to touch the telescope as infrequently as possible — focus, release, count to 5, then look. Never focus while looking through the eyepiece on a shaky mount.

What is the most vibration-free telescope design?

Dobsonian mounts, by a significant margin. The wooden rocker box sits directly on any surface, has a very low centre of gravity, and its mass damps vibration in under a second. Large professional observatories use Dobsonian-derived designs precisely because they’re inherently stable. For beginners, the Sky-Watcher Heritage 130P is the best affordable example.

Can I fix a wobbly telescope without buying new equipment?

In most cases, yes. The five-step checklist (lower the tripod, spread legs wide, hang weight from the center spreader, never touch while viewing, pad the tripod feet) costs nothing or near-nothing and eliminates most beginner vibration problems. If the mount has hardware damage — stripped leg locks, bent legs, cracked mount head — that’s a different issue that may require replacement parts.
